Time Series Observations at a station in the Western Sub-arctic Pacific (KNOT)

funded by the Japan Science and Technology Corporation (JST)

1. Purpose

KNOT mapIn June 1998, Japanese ocean scientists established a time-series observation station in the western North Pacific. The station, located at 44N, 155E, is known as KNOT, short for Kyodo North Pacific Ocean Time-series (Kyodo is a Japanese word meaning "collaborative"). The scientific focus of the program at KNOT is the seasonal carbon cycle.


Although the study region exhibits high seasonal variability in sea surface temperature and biological activity, there have been few observations to document the seasonal variations in carbon concentrations and related parameters. The location was chosen because it is located in the western subarctic gyre, and the travel time from Japan to the station is less than three days. In addition, measurements made by Hokkaido University during summer between 1992 and 1997 can be used for comparison.


2. Organization

The KNOT program was proposed by the JGOFS-Japan committee, led by Nobuhiko Handa of Aichi Prefectural University, Shizuo Tsunogai of Hokkaido University and Toshiro Saino of Nagoya University. It is funded by the Japan Science and Technology Corporation (JST) as one of the Core Research for Evaluational Science and Technology (CREST) Programs. The core members of the CREST program include the organizer Yukihiro Nojiri of the National Institute for Environmental Studies, JST post-doctoral fellows Keiri Imai and Nobuo Tsurushima, and JST technicians Fujio Shimano and Takeshi Egashira. Many other Japanese scientists have joined in this program as well.


3. Research Cruises

The biggest challenge of the KNOT program was securing ship time for the fieldwork. There was no single ship dedicated to these time-series observations. Four research vessels have been used for the observations made to date: T/S Hokusei-maru from Hokkaido University, R/V Bosei-maru from Tokai University, R/V Mirai from Japan Marine Science and Technology and R/V Hakuho-maru from the University of Tokyo. Scientific instruments were packed, moved and set again to accommodate each ship change.

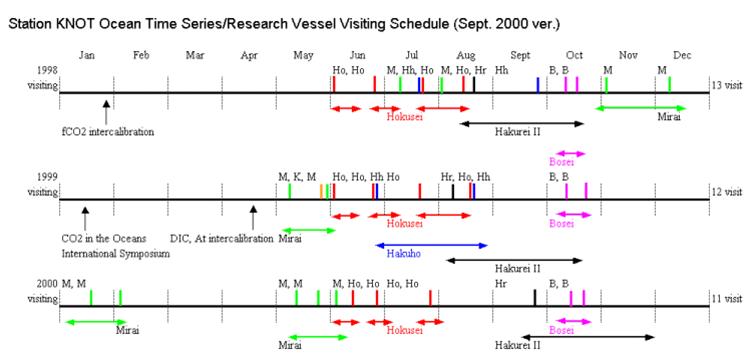

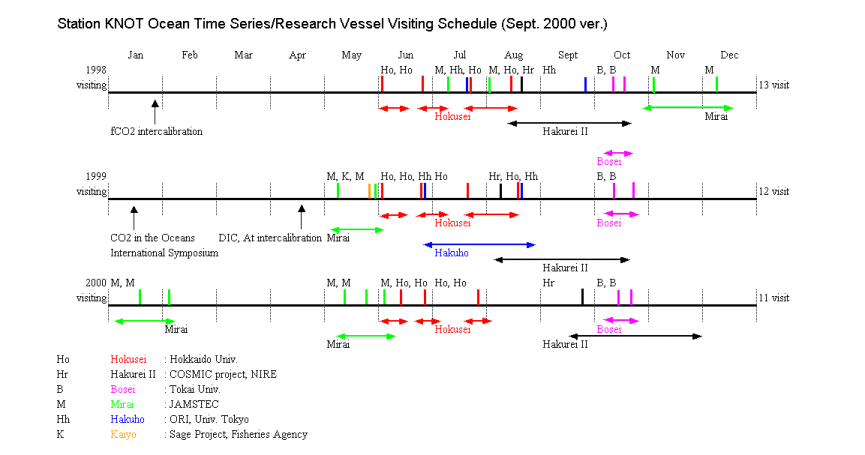

The KNOT station was occupied eight times in 1998 and 10 times in 1999 and 2000 respectively. In addition, observations were sometimes made along north-south transects near the KNOT station. In some cases, the KNOT station was occupied twice during on long cruise, with transect work between occupations.

4. Measurement and Analyzing Data

Measurements made during KNOT include carbonate system parameters, including dissolved inorganic carbon (DIC), alkalinity and the fugacity of carbon dioxide (fCO2) in surface waters, as well as temperature, salinity, nutrients and oxygen. Discrete water samples were collected throughout the water column from the surface to at least 3000 meters.


Surface layer measurements of biological activity, including chlorophyll a concentrations and primary productivity, were also made on nearly every cruise, along with collections of phyto- and zooplankton. For more than half the cruises, floating sediment traps were deployed, and measurements were made of particulate and dissolved organic carbon (POC and DOC), iron, trace metals, halocarbons, methane, nitrous oxide, stable isotopic ratios of DIC, the ratio of nitrogen to Oxygen and argon, and thorium-234.


5. Research Results

Some pictures produced from the result of the project are introduced in the page ‘Rerach/JP09/Pictures.htm’ for your reference.


6. Observation Data

The data list of KNOT included in this dataset is introduced at ‘Research/JP09/Inventory.htm’.


7. Publications

Some papers related to KNOT are listed in ‘Research/JP09/Publication.htm’ for your reference.


Last update on August 12, 2003

by Norio BABA
