Oceanographic

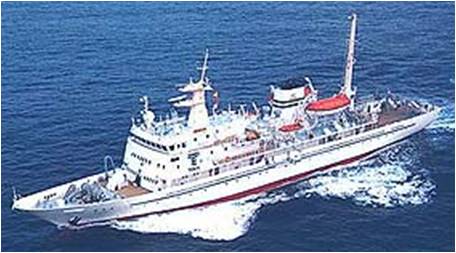

Research & Training Ship Bousei-Maru
operated by Tokai University
|
Operator |
Department of Oceanography, Tokai
University Phone: +81-543-34-0411 http://www.scc.u-tokai.ac.jp/bosei/bousei/hp/index1.htm |
|
Builder |
Miho Shipyard Co., Ltd. |
|
Keel Laid |
October 1992 |
|
Launched |
March 1993 |
|
Completed |
October 1993 |
|
Length(o.a) |
87.98ｍ |
|
Breadth (mld.) |
75.00ｍ |
|
Draft (mｌd.) |
4.80ｍ |
|
Gross Tonnage |
2,174
tons |
|
Accommodation |
Crew: 33 persons Researcher: 17 persons Student: 140 persons Total: 190 persons |
|
Cruising Speed |
17.00
knots |
|
Cruising Range |
|
|
Main Engine |
2,500ps x 720rpm x 2 |
|
Propeller |
4bladed CCP x 1set |
|
Main Generator |
|
|
Bow Thruster |
|
|
Maine Equipments |
PDR, SBP, Air-gun, CTD, Auto-analyzer,
ADCP |
|
Laboratories |
Dry Lab, Wet Lab, CTD Storage, Computer
room |
|
Deck Gears |
Winch for oceanographic
observation: 8,000m/14mm, 8,000m/9mm, 3,000m/3mm, 1,500m/3mm CTD
winch: 6,000/m7.4mm armored |
|
A-shaped stern gantry |
6t, 2t, 1t |
