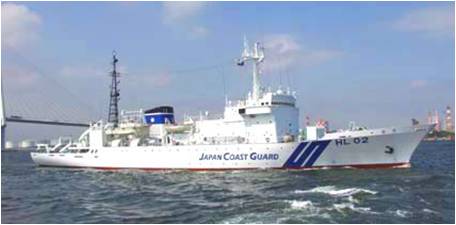

Survey
Vessel Takuyo
operated by Hydrographic &
Oceanographic Dept., JCG
![[TAKUYO Image]](Takuyo.files/image002.jpg)
|
Operator |
Hydrographic & Oceanographic Dept.,
JCG 5-3-1, Tsukiji,
Chuo-ku, Tokyo 104-0045, Japan Phone: +81-3-3541-3685, Fax:
+81-3-3248-1250 http:// http://www1.kaiho.mlit.go.jp/jhd-E.html/ |
|
Builder |
NKK Co., Tsurumi
Shipyard |
|
Keel Laid |
April 1982 |
|
Launched |
March 1983 |
|
Completed |
August 1983 |
|
Length |
96.0 m |
|
Breadth |
14.2 m |
|
Draft |
4.91 m |
|
Gross Tonneage |
2,481 tons |
|
Accommodation Capacity |
Crew:
38
persons Researcher:
23
persons Total:
61
persons |
|
Cruising Speed |
16 knots |
|
Cruising Range |
12,000 nautical miles |
|
Maine Engine |
2600ps x 3400rpm x 2units |
|
Propeller |
4 bladed CPP x 2 sets |
|
Main Generator |
|
|
Bow Thruster |
7ton |
|
Laboratories |
|
|
Deck Gears |
|
|
A-shaped stern gantry |
|
|
Main Equipment |
·
Hybrid positioning
system ·
Narrow multi-beam
echo sounder ·
Deep-sea seismic
profiler ·
Towed CTD ·
Ship-drift current
meter ·
Hydrographic data acquisition
system ·
XBT ·
Acoustic Doppler
Current Profiler |
