Survey

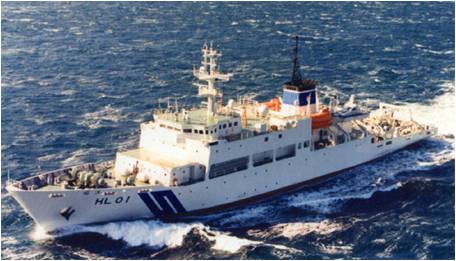

Vessel Shoyo
operated by Hydrographic &
Oceanographic Dept., JCG
|
Operator |
Hydrographic & Oceanographic Dept.,
JCG 5-3-1, Tsukiji, Chuo-ku,
Tokyo 104-0045, Japan Phone: +81-3-3541-3685, Fax:
+81-3-3248-1250 http://
http://www1.kaiho.mlit.go.jp/jhd-E.html/ |
|
Builder |
|
|
Keel Laid |
|
|
Launched |
|
|
Completed |
March 1998 |
|
Length(o.a) |
98.0 m |
|
Breadth (mld.) |
15.2 m |
|
Draft (mld.) |
7.8 m |
|
Gross Tonnage |
3,128 tons |
|
Accommodation |
Total: 70 persons |
|
Cruising Speed |
17 Knots |
|
Cruising Range |
12,000 nautical miles |
|
Thruster Method |
Diesel-electric
propulsion system with Fixed Pitch Propellers |
|
Main Generator |
|
|
Bow Thruster |
|
|
Laboratories |
|
|
Deck Gears |
|
|
A-shaped stern gantry |
|
|
Main Equipment |
·
Hybrid Positioning
System ·
Narrow Multi-Beam
Sounder (Seabeam2112) ·
Deep Sea Sidescan Sonar ·
Deep Sea Seismic
Profiling System 120ch/1ch ·
Sub-Bottom
Profiler ·
Magnetic meter ·
Gravity meter ·
Carbon Dioxide
meter ·
Wave Meter ·
CTD SBE911Plus (a salino-thermo-depthmeter) ·
ADCP(a tachometry)
|
