Oceanographic and Marine Meteorological Observation

conducted by Japan Meteorological Agency

1. Purpose

The Japan Meteorological Agency (JMA) was started as the Tokyo Meteorological Observatory (TMO) in the Ministry of Interior in 1875.

The major activities of JMA are: (i) to issue warnings, advisories and forecasts in short-range, one-week and long-range ; (ii) to deal with the global environmental issues such as global warming and ozone depletion; (iii) to provide information on earthquake and volcanic activities.



Atmospheric and oceanographic observations are the basis of providing meteorological services. JMA operates comprehensive observations network for observing elements such as atmospheric pressure, temperature, humidity, wind direction and speed, precipitation, sunshine duration, weather, sea water temperature and ocean currents observations. These data are acquired by surface observations made at observatories and at AMeDAS stations; upper-air observations; weather radar observations; meteorological satellite observations; and oceanographic and marine meteorological observations with ships and ocean data buoys. Furthermore, JMA is making efforts to utilize data from other organizations of the government and local authorities.



2. Oceanographic Observation by Research Vessels

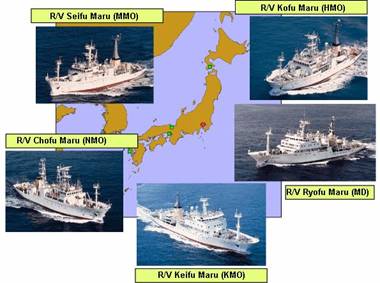

JMA presently operates following five research vessels to conduct operational oceanographic observations in the seas adjacent to Japan and in the western North Pacific including the equatorial area.



·           R/V Ryofu Maru    : Marine Department at the Headquarter

·           R/V Kofu Maru     : Hakodate Marine Observatory

·           R/V Keifu Maru     : Kobe Marine Observatory

·           R/V Chofu Maru    : Nagasaki Marine Observatory

·           R/V Seifu Maru     : Maizuru Marine Observatory



4. Observation System

In order to monitor the large scale and long term variation of the ocean, these vessels observe many oceanographic and marine metrological data, such as water temperature, salinity and current etc.  And also the marine pollution such as a heavy metal and hydrocarbon data, and the greenhouse gases considered as the cause of global warming such as carbon dioxide and methane are observed using these research vessels.

The following measurement methods are generally taken in JMA;

Measurement Item

Instrument/Method

Temp., Salinity

CTD

Temp. profile

XBT

DO

Water sampler/ Winkler method

Nutrients

Auto-analyzer

Plankton

NORPAC Net of JMA C Net

Chl-a, Phaeo

Water sampler/ extraction solvent fluorometer

Current

ADCP

Tar ball

Neuston Net

Hydrocarbon

Fluorescence spectrophotometer



5. Research Results

The data Some pictures produced from the result of this research activity are introduced in the page ‘Rerach/JP12/Pictures.htm’ for your reference.



6. Observation Data

Since the oceanographic observation data by JMA has been available as the JMA report, and also through the International Oceanographic Data and Information Exchange system (IODE) promoted by IOC/UNSCO, we introduce only the information of its research cruise in this dataset expect the research projects, such as WOCE, SAGE etc.

The cruise which are expected a contribution for Ocean Flux study are counted more than 250 cruises from 1990 to 2000.

The detail of these cruises is introduced at ‘Research/JP12/Inventory.htm’.



7. Publications / Data Services

The data obtained by JMA had been published in two series of reports: “The results of Oceanographical Observations” since 1950 and “Data from Ocean Data Buoy Stations” since 1997.

“The results of Oceanographical Observations” had contained following data;

·           Hydrocast Data

·           Heavy Metal and Hydrocarbons Data

·           Particulate Petroleum Residues (Tar Balls) Data

·           Subsurface Temp. Data

·           Subsurface Current (ADCP) Data

·           Plankton Data

JMA has published the data of the above two reports in a CD-ROM with documents entitled “Data Report of Oceanographic Observations” since 1995.

JMA has played as World Data Center for Greenhouse Gases(WDCGG) to collect, manage and provide the greenhouse gases data such as Carbon Dioxide and Methane etc. in the atmosphere and ocean.  All the data collected by WDCGG is able to get and view in a graph at its web page http://gaw.kishou.go.jp/wdcgg.html.



Last update on August 13, 2003

by Norio BABA
